Stiltz Duo Elevator

Stiltz Duo Elevator
Call for pricing
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The Duo Benefits

Small Footprint

Smallest footprint of any lift on the market – covers less than 7sf surface area

Quiet

Powered by a quiet electric self-contained motor – no noisy hydraulics or vacuum systems

Fast Installation

Elevators are made up of modular sections – standard installs take just one day

Power Consumption

Plugs into a regular 110v or 220v power outlet – like any other household appliance

Unique Guide System

Two parallel and vertical guides bear load of the lift – self-supporting structure

Self Contained Drive System

Housed at the top of the lift, out of sight


SPECS

DriveRoped drum, braked gear motor drive
Power Supply220 – 240v AC / 5 Amps – will work off 110v with step-up transformer
Maximum Load 375lb / 170kg
Maximum Travel13’1” / 4 meters
Entrance SecurityFull-height light curtain / motion sensor – option for full-height door
Maximum Speed6″ / 15cm per Second
Warranty2 year parts
Rope Diameter6mm galvanized steel rope
Additional SensorsOut-of-balance & overload, overspeed detection and light curtain
Lighting Type2 x 3w LED downlights
Landing Call Stations2 Wireless remote control units – call / send facility (3 x standard AAA batteries in each)
InstallationTypical installation takes one days
OperationHold-to-run controls

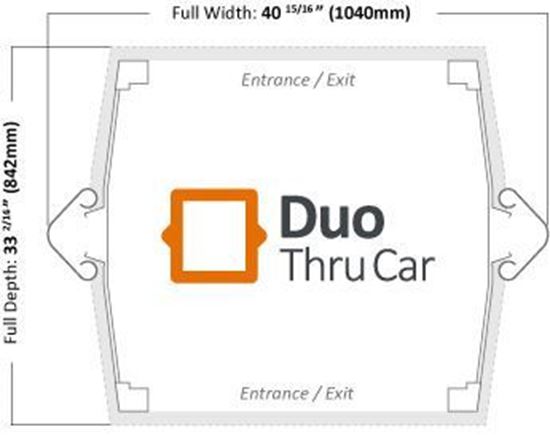

ConfigurationSingle entry or double entry / thru-car
