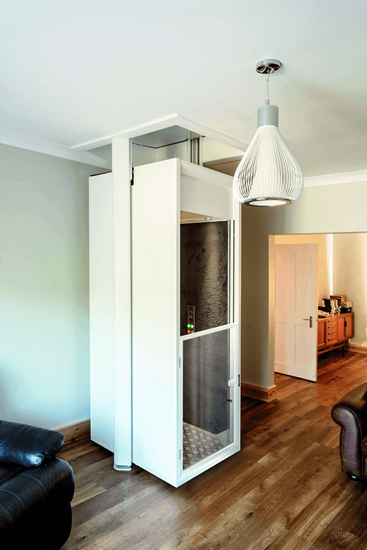

Stiltz Trio Elevator

Call for pricing

Smallest footprint of any wheelchair lift – covers less than 13.5sf surface area

Elevators are made up of modular sections – standard installs take as little as one day

Plugs into a regular 110v or 220v power outlet – like any other household appliance

Two parallel and vertical guides bear load of the lift – self-supporting structure

Housed at the top of the lift, out of sight

SPECS

Drive	Roped drum, braked gear motor drive
Power Supply	220 – 240v AC / 5 Amps – will work off 110v with step-up transformer
Maximum Load	485lbs \| 220kg
Maximum Travel	13’1″ / 4 metres
Entrance Security	Full height light curtain / motion sensor – optional full height door
Maximum Speed	6″ / 15cm per second
Warranty	2 year parts warranty
Rope Diameter	6mm galvanized steel rope
Additional Sensors	Out-of-balance & overload, overspeed detection and light curtain
Lighting Type	4 x 3w LED downlights
Landing Call Stations	2 Wireless remote control units – call / send facility (3 x standard AAA batteries in each
Installation	Typical installation takes one to two days
Operation	Hold-to-run controls

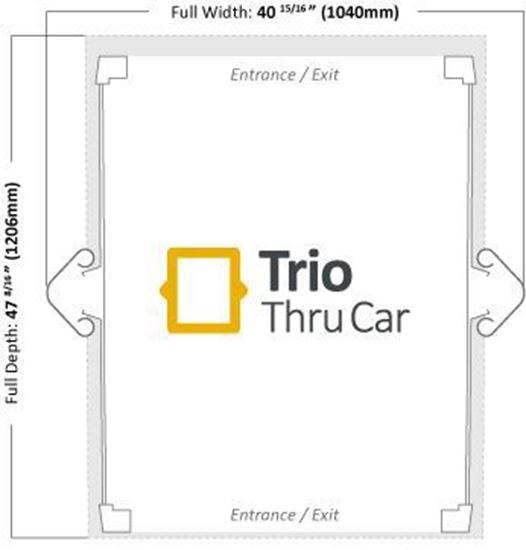

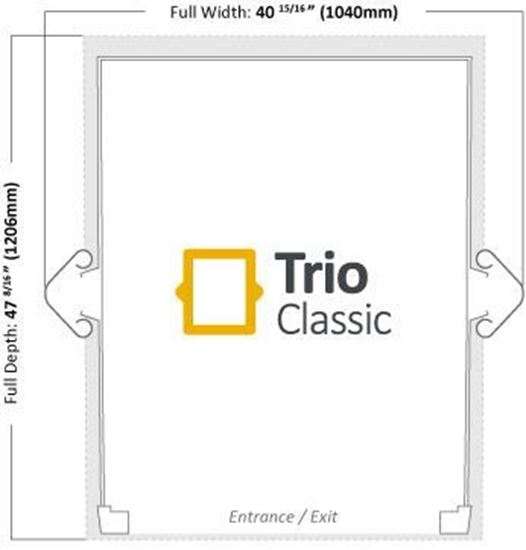

Configuration	Single entry or double entry / thru-car
